Contour 1.3

'If Stradivarius was alive today, his name would probably be Strådivårisen.'

"For more than three centuries, experts have been trying to discover the secret behind some rather good sounding small boxes from Cremona, Italy. For the last decades, some small wooden boxes from Skanderborg, Denmark, have turned out to be just as puzzling!" Børge Jensen, Dynaudio-engineer for eight years.

Yes, a great loudspeaker can be small. For the Contour 1.3, the successor of the legendary Contour 1, the classic small high end speaker, let's start with the drive units: having optimized them for a mere 16 years, we think, they define a new, true state of the art.

The tweeter combines elements of our unsurpassed Esotar T -330 D with features from our new Esotec D-260 for a combination of power and musicality which is new in this class.

With a Ferrofluid-damped resonance and an aluminium voice coil which we would like to call light as a feather, except it weighs even less. With unlimited dynamics, and a linear frequency response, free from peaks and dips, even above 20 kHz. The further improved bass driver sets new standards especially for the reproduction of low frequencies: With an oversized voice coil, which assures perfect control of even the most minute membrane displacement.

With a flat, linear group delay membrane geometry, our famous magnesium polymer membrane material with exactly defined damping characteristics, and a vented center magnet system.

And, thanks to a frequency-dependent active surface, with a very homogenous off-axis response and extreme dynamic capabilities.

The Contour 1.3's enclosure has been further stiffened at the resonance nodes. Computer-calculated reinforce-ments allow a completely uncolored reproduction of the all-important midrange.

The final result is an even-tempered musicality in all frequency ranges and with all kinds of music - even if the signal source is less than perfect; the Contour 1.3 can be run with medium power (and price) amplifiers. Which justifies the not quite so low price of this exceptional compact speaker, as does its sound quality, which far sur-passes what you' d expect in this class and from a speaker this size.

Contour1_3

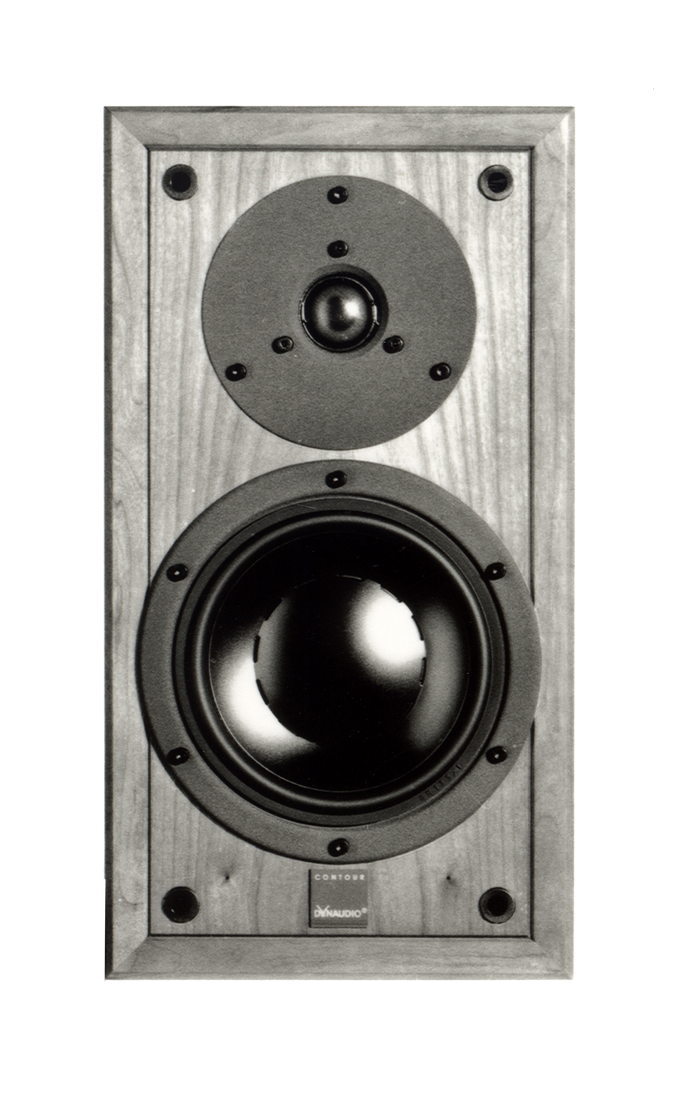

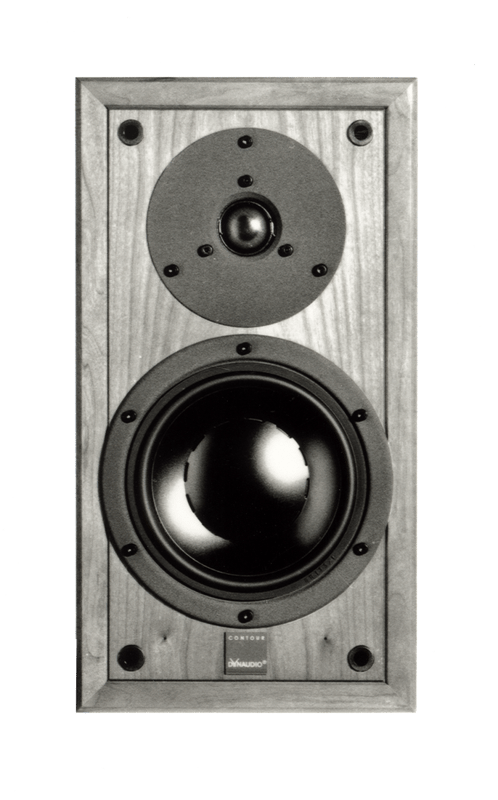

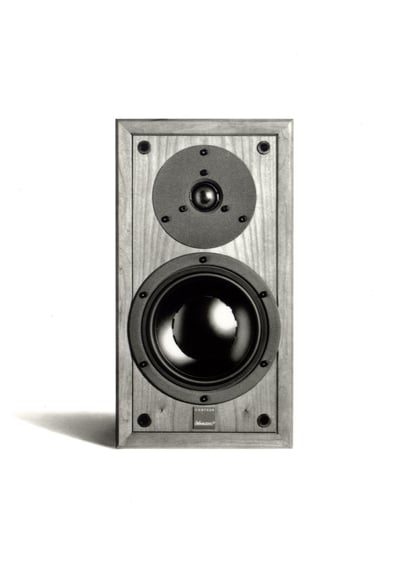

Contour 1.3

Spezifikationen

  • Status Discontinued
  • Segment Home
  • Serie Contour
  • Typ Bookshelf
  • Empfindlichkeit (dB @ 2.83V/1m) 85
  • IEC Belastbarkeit (W) 150
  • Nennimpedanz (Ohm) 4
  • Untere Grenzfrequenz (Hz @ +/- 3 dB) 45
  • Obere Grenzfrequenz (kHz @ +/- 3 dB) 22
  • Gehäuse-Prinzip Bass reflex rear ported
  • Frequenzweiche 2-way
  • Hochtöner 28 mm Soft Dome
Mehr sehen

Find a dealer

Find your nearest Dynaudio dealer and pay them a visit today, or sign up for a listening session.

Search
Location Filter

    Die Contour Serie

    • Status:
    • Segment:
    • Serie:
    • Typ:
    • Empfindlichkeit (dB @ 2.83V/1m):
    • IEC Belastbarkeit (W):
    • Nennimpedanz (Ohm):
    • Untere Grenzfrequenz (Hz @ +/- 3 dB):
    • Obere Grenzfrequenz (kHz @ +/- 3 dB):
    • Gehäuse-Prinzip:
    • Frequenzweiche:
    • Hochtöner:
    Mehr sehen
    • Contour 1.1
    • Discontinued
    • Home
    • Contour
    • Bookshelf
    • 85
    • 150
    • 4
    • 47
    • 30
    • Bass reflex rear ported
    • 2-way
    • 28 mm Soft Dome
    • Contour 1.3
    • Discontinued
    • Home
    • Contour
    • Bookshelf
    • 85
    • 150
    • 4
    • 45
    • 22
    • Bass reflex rear ported
    • 2-way
    • 28 mm Soft Dome
    • Contour 1.3 MK II
    • Discontinued
    • Home
    • Contour
    • Bookshelf
    • 86
    • 150
    • 4
    • 43
    • 24
    • Bass reflex rear ported
    • 2-way
    • 28 mm Soft Dome
    • Contour 1.3 SE
    • Discontinued
    • Home
    • Contour
    • Bookshelf
    • 85
    • 170
    • 6
    • 37
    • 27
    • Bass reflex rear ported
    • 2-way
    • 28 mm Soft Dome
    • Contour 1.8
    • Discontinued
    • Home
    • Contour
    • Floorstand
    • 86
    • 150
    • 4
    • Bass reflex rear ported
    • 2.5 way
    • 28 mm Soft Dome
    • Contour 1.8 MK II
    • Discontinued
    • Home
    • Contour
    • Floorstand
    • 86
    • 250
    • 4
    • 28
    • 30
    • Bass reflex rear ported
    • 2.5 way
    • 28 mm Soft Dome
    • Contour 2
    • Discontinued
    • Home
    • Contour
    • Floorstand
    • 84
    • 150
    • 4
    • 31
    • 21
    • Variovent
    • 3-way
    • 28 mm Soft Dome
    • Contour 2.8
    • Discontinued
    • Home
    • Contour
    • Floorstand
    • 86
    • 150
    • 4
    • 32
    • 21
    • Passive Radiator
    • 3-way
    • 28 mm Esotar T330
    • Contour 3
    • Discontinued
    • Home
    • Contour
    • Floorstand
    • 86
    • 200
    • 4
    • 30
    • 21
    • Bass reflex rear ported
    • 3-way
    • 28 mm Soft Dome
    • Contour 3.3
    • Discontinued
    • Home
    • Contour
    • Floorstand
    • 88
    • 300
    • 4
    • 32
    • 20
    • Bass reflex rear ported
    • 3-way
    • 28 mm Soft Dome
    • Contour 4
    • Discontinued
    • Home
    • Contour
    • Floorstand
    • 86
    • 250
    • 4
    • 29
    • 20
    • Passive Radiator
    • 3-way
    • 28 mm Esotar T330
    • Contour Center
    • Discontinued
    • Home
    • Contour
    • Center
    • 86
    • 150
    • 6
    • 80
    • 21
    • Variovent
    • 2-way
    • 28 mm Soft Dome
    • Contour T 2.1
    • Discontinued
    • Home
    • Contour
    • LCR
    • 86
    • 200
    • 6
    • 32
    • 25
    • Bass reflex rear ported
    • 2-way
    • 28 mm Soft Dome
    • Contour T 2.5
    • Discontinued
    • Home
    • Contour
    • Floorstand
    • 86
    • 200
    • 6
    • 29
    • 25
    • Bass reflex front ported
    • 2-way
    • 28 mm Soft Dome
